Establishing a security configuration

A Common Criteria configuration that also meets IPsec VPN gateway requirements for Commercial Solutions for Classified (CSfC) solutions program requires a specific configuration of the SMC Appliance, SMC software, and Security Engines.

Note: When a CSfC compliant configuration requires specific selections for setup, those requirements are noted separately.

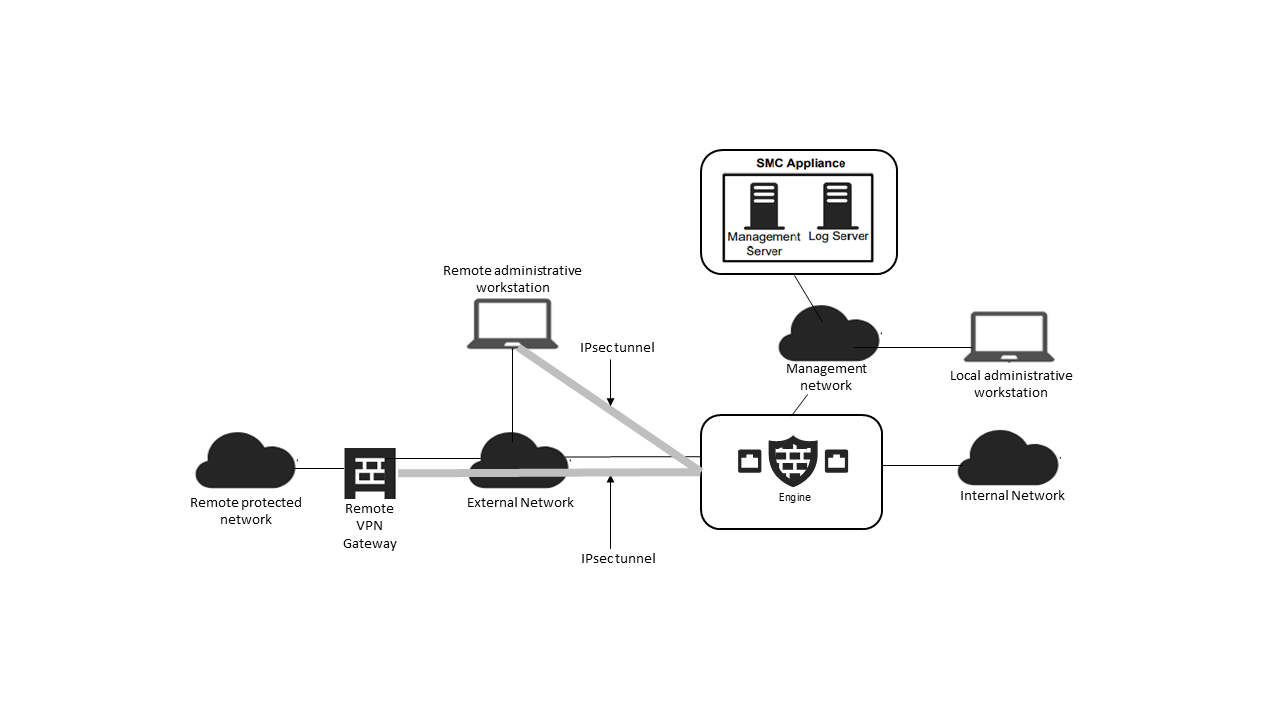

Figure: Components overview



Preparations for the configuration

  • Install the Forcepoint Network Security Platform components within a physically protected environment.
  • The Forcepoint Network Security Platform is administered over a trusted and separate management network.
  • Multiple installations of the Security Engine may be used in combination.
  • Connect the Virtual SMC Appliance and Security Engines to the management network using dedicated management network interfaces.
  • Connect the Security Engines to the internal and external networks.
  • The evaluated configuration includes a virtualization server or virtualization servers where the Virtual SMC Appliance and Virtual Security Engine are run as virtual machines.
  • Configure the virtual networking according to the network topology.

These high-level steps are an overview of the process to configure the SMC Appliance and Security Engine appliances for the Common Criteria evaluated configuration.

  1. Enable FIPS mode at the SMC Appliance startup. The SMC Appliance runs a series of self-tests.
  2. If the SMC Appliance self-tests result in errors, reset the appliance to factory settings.
  3. Perform the initial SMC configuration that includes setting the IP address, initial administrator account creation, and certificate enrollment with an external Certificate Authority.
  4. Install the SMC Client, then configure the security parameters for the Common Criteria evaluated configuration.
  5. Create and install Security Engines in FIPS mode. The Security Engine appliance runs a series of self-tests.
  6. If the Security Engine appliance self-tests result in errors, reset the appliance to factory settings.
  7. Enroll Security Engines with an external Certificate Authority to establish secure management communication with the SMC.
  8. Review the audit events.

FIPS mode restrictions

When FIPS mode is enabled, the following restrictions are enforced:

  • The Security Engine local console, command line interface, and SSH access are not available
  • The available cryptographic algorithms and configuration options in the SMC are restricted:
    • RSA key sizes of 2048 bits or greater are used for digital signature generation
    • ECDSA key sizes of 256 bits or greater are used for digital signature generation
    • SHA-1 cannot be used for digital signature generation
Additionally, when the management server, log server, and security engines are enrolled with an ECDSA key size of 384 bits (NIST curve P-384), the following additional restrictions are implicitly enabled:
  • When SMC or Security Engine acts as the TLS client, the supported signature algorithms in the TLS signature_algorithms extension for management connections are limited to ecdsa_secp384r1_sha384 (0x0503).
  • When SMC acts as the TLS client, the supported groups in the TLS supported_groups extension for management connections are limited to secp384r1 (0x0018).
  • When SMC or Security Engine acts as the TLS server, the signature algorithms in the certificate request for management connections are limited to ecdsa_secp384r1_sha384 (0x0503).
