Security Engine ports
The most important default ports used in communications to and from Security Engines and Master Engines are presented in the following illustrations.
See the table for a complete list of default ports for the engines.
Note: Master Engines use the same default ports as clustered Security Engines. Virtual Engines do not communicate directly with other system components.

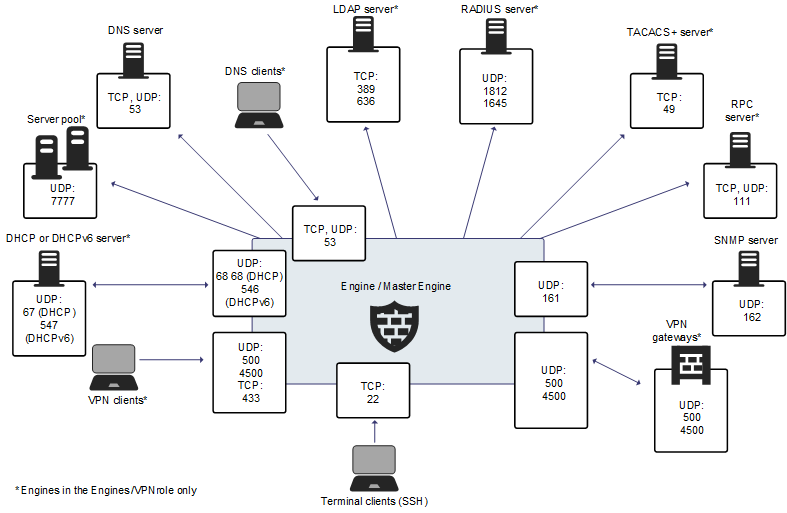

Figure: Destination ports for basic Security Engine communications

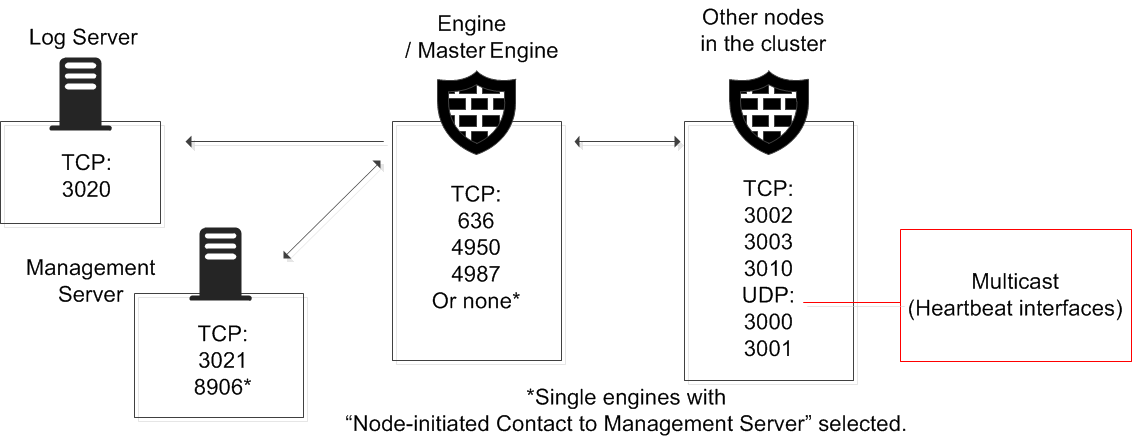

Figure: Default destination ports for Security Engine service communications
This table lists the default ports for Security Engines and Master Engines. Many of these ports can be changed. The names of corresponding default Service elements are also included for your reference.
| Listening host | Port/protocol | Contacting hosts | Service description | Service element name |
|---|---|---|---|---|
| Certificate Revocation List (CRL) server | 80/TCP | Engine | Online certificate status protocol (OCSP) queries and fetching CRLs. | HTTP |
| DHCP server | 67/UDP | Engine | Relayed DHCP requests and requests from a engine that uses dynamic IP address. | BOOTPS (UDP) |
| DHCPv6 server | 547/UDP | Engine | Requests from a engine that uses dynamic IPv6 address. | N/A |
| External DNS server | 53/UDP, 53/TCP | Engine, Master Engine | DNS resolution and dynamic DNS updates. | DNS (TCP), DNS (UDP) |
| File reputation server | 443/TCP | Engine, Layer 2 Engine, IPS, Master Engine | GTI File Reputation Server | HTTPS |
| Engine | 67/UDP | Any | DHCP relay on engine. | BOOTPS (UDP) |
| Engine | 68/UDP | DHCP server | Replies to DHCP requests. | BOOTPC (UDP) |
| Engine | 80/TCP | Clients that need to authenticate to the Engine | Browser Based User Authentication | HTTP |
| Engine | 443/TCP | Clients that need to authenticate to the Engine | Browser Based User Authentication | HTTPS |
| Engine | 443/TCP | VPN clients using SSL tunneling | VPN client SSL tunneling | TLS |
| Engine | 443/TCP | SSL Portal users | SSL VPN Portal | HTTPS |
| Engine | 546/UDP | DHCPv6 server | Replies to DHCPv6 requests. | N/A |
| Engine, Master Engine | 53/UDP, 53/TCP | Clients in the internal network | DNS relay | DNS (TCP), DNS (UDP) |
| Engine, Master Engine | 500/UDP | VPN clients, VPN gateways | VPN negotiations, VPN traffic. | ISAKMP (UDP) |
| Engine, Master Engine | 636/TCP | Management Server | Internal user database replication. | LDAPS (TCP) |
| Engine, Master Engine | 4500/UDP | VPN client, VPN gateways | VPN traffic using NAT-traversal. | NAT-T |
| Engine Cluster Node, Master Engine cluster node | 3000-3001/UDP, 3002–3003, 3010/TCP | Engine Cluster Node, Master Engine cluster node | Heartbeat and state synchronization between clustered Engines. | SG State Sync (Multicast), SG State Sync (Unicast), SG Data Sync |
| Engine, Layer 2 Engine, IPS, Master Engine | 22/TCP | Terminal clients | SSH connections to the engine command line. Note: Do not use SSH in FIPS mode.
|
SSH |
| Engine, Layer 2 Engine, IPS, Master Engine | 4950/TCP | Management Server | Remote upgrade. | SG Remote Upgrade |
| Engine, Layer 2 Engine, IPS, Master Engine | 4987/TCP | Management Server | Management Server commands and policy upload. | SG Commands |
| Engine, Layer 2 Engine, IPS, Master Engine | 15000/TCP | Management Server, Log Server | block list entries. | SG block listing |
| Engine, Layer 2 Engine, IPS, Master Engine | 161/UDP | SNMP server | SNMP monitoring. | SNMP (UDP) |
| Engine, Layer 2 Engine, IPS | 9111/TCP | Forcepoint One Endpoint client | Endpoint information from the Forcepoint One Endpoint client. | N/A |
| Forcepoint User ID Service server | 5000/TCP | Engine, Layer 2 Engine, IPS | Information about user name and IP address mappings. | N/A |
| IPS Cluster Node | 3000-3001/UDP, 3002–3003, 3010/TCP | IPS Cluster Node | Heartbeat and state synchronization between clustered IPS engines. | SG State Sync (Multicast), SG State Sync (Unicast), SG Data Sync |
| LDAP server | 389/TCP | Engine, Master Engine | External LDAP queries, including StartTLS connections. | LDAP (TCP) |
| Layer 2 Engine Cluster Node | 3000-3001/UDP, 3002–3003, 3010/TCP | Layer 2 Engine Cluster Node | Heartbeat and state synchronization between clustered Layer 2 Engines. | SG State Sync (Multicast), SG State Sync (Unicast), SG Data Sync |
| Log Server | 3020/TCP | Engine, Layer 2 Engine, IPS, Master Engine | Log and alert messages; monitoring of block lists, connections, status, and statistics. | SG Log |
| Malware signature server | 80/TCP | Engine, Layer 2 Engine, IPS, Master Engine | Malware signature update service. | HTTP |
| Management Server | 3021/TCP | Engine, Layer 2 Engine, IPS, Master Engine | System communications certificate request/renewal (initial contact). | SG Initial Contact |
| Management Server | 8906/TCP | Engine, Layer 2 Engine, IPS | Management connection for engines with "Node-Initiated Contact to Management Server" selected. | SG Dynamic Control |
| RADIUS server | 1812, 1645/UDP | Engine, Master Engine | RADIUS authentication requests. | RADIUS (Authentication), RADIUS (Old) |
| RPC server | 111/UDP, 111/TCP | Engine, Master Engine | RPC number resolve. | SUNRPC (UDP), Sun RPC (TCP) |
| Server Pool Monitoring Agents | 7777/UDP | Engine, Master Engine | Polls to the servers' Server Pool Monitoring Agents for availability and load information. | SG Server Pool Monitoring |
| SNMP server | 162/UDP | Engine, Layer 2 Engine, IPS, Master Engine | SNMP traps from the engine. | SNMP Trap (UDP) |
| TACACS+ server | 49/TCP | Engine, Master Engine | TACACS+ authentication requests. | TACACS (TCP) |
| ThreatSeeker Intelligence Cloud server | 443/TCP | Engine, Layer 2 Engine, IPS, Master Engine | ThreatSeeker Intelligence Cloud URL categorization service. | HTTPS |
| VPN gateways | 500, 4500/UDP | Engine, Master Engine | VPN traffic. Ports 443/TCP (or custom port) can also be used, depending on encapsulation options. | ISAKMP (UDP) |
