System

Post installation you must configure the agent settings from the System dashboard.

Endpoint Settings

  1. Login to the Forcepoint DSPM console.
  2. Navigate to Endpoint > System > Endpoint Settings.

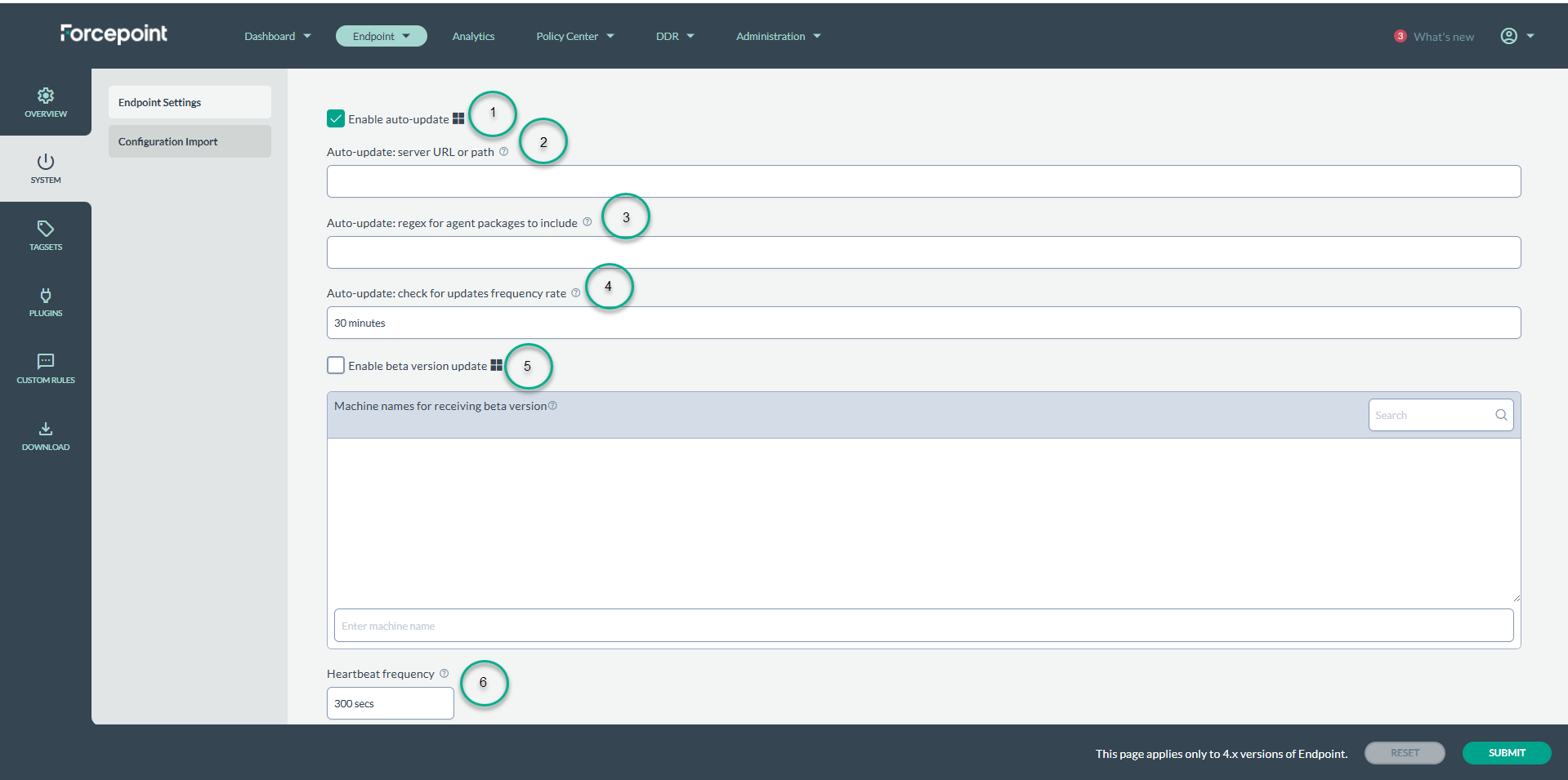

    Explanation of the fields

    1 Enable auto-update: Auto-update feature of the agent allows the distribution of new versions of the agent without reinstalling it on a user's machine. By default, the agent will look in https://{cluster}/static-server/static/agent/stable/ for new artifacts to update from. If the user would like to user a specific URL or path to look for the artifacts, it should be configured here. An example format is as follows:
    • URL: https://path/to/web/server/containing/binaries/
    • Path: C:\path\to\artifacts\folder\
    To disable auto update simply uncheck this field.
    2 Auto-update: server URL or path: Server address where auto update artifact is hosted. By default this field should be left empty. Default: 'https://www.example.com', //. If value is not provided then the following value will be used: https://{cluster_address}/static-server/static/agent/stable/
    3 Auto-update: regex for agent packages to include: Regular expression which is executed to search for packages to apply. By default, the agent will use a regex pattern to look for artifacts that meet the same naming (\d+\.\d+\.\d+|\.zip) (e.g. AgentClassifier.4.0.5-Forcepoint-windows.msi will continue to look for Forcepoint-flavoured installers. An example format is as follows:
    (flavour|\d+\.\d+\.\d+|\.zip)
    4 Auto-update: check for updates frequency rate: How often should the agent look for new updates to apply.
    5 Enable beta version update: This option will allow the agent to monitor for new beta releases, and install them if available.
    6 Heartbeat frequency: This determines how often the agent will send a ping to the backend to report it’s alive.
    7 Supported languages: Languages set here will appear as options to select from the configuration section on the agent’s tray bar icon.
    8 Agent suggestion frequency rate: Determines how frequently the agent sends text to the backend for analysis and feedback. It is expressed in seconds, with valid values starting from 1. The default value is 15. Note that lower values may lead to performance issues, while very high values (e.g., 300) could result in no suggestions being received.
    9 Minimum confidence threshold: ML suggestions always come with a confidence value. If the confidence value of the suggestion is higher than the threshold, it will be displayed. If the confidence value of the suggestion is lower than the threshold, no suggestion will be displayed.

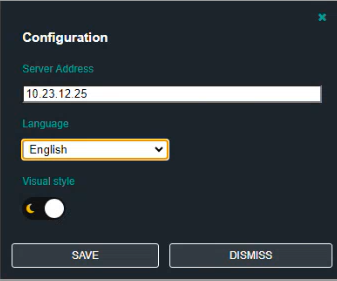

    10 Disable configuration menu: If this option is checked, the 'configuration' menu will not be displayed when right-clicking on the agent's tray bar icon.

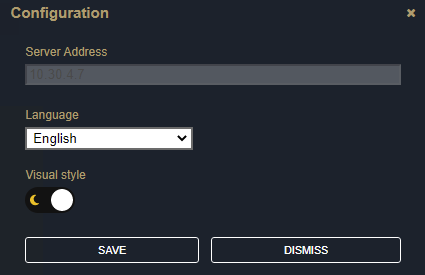

    11 Block Server Address edit: If selected, the 'Server Address' field will be grayed out, rendering it non-editable.

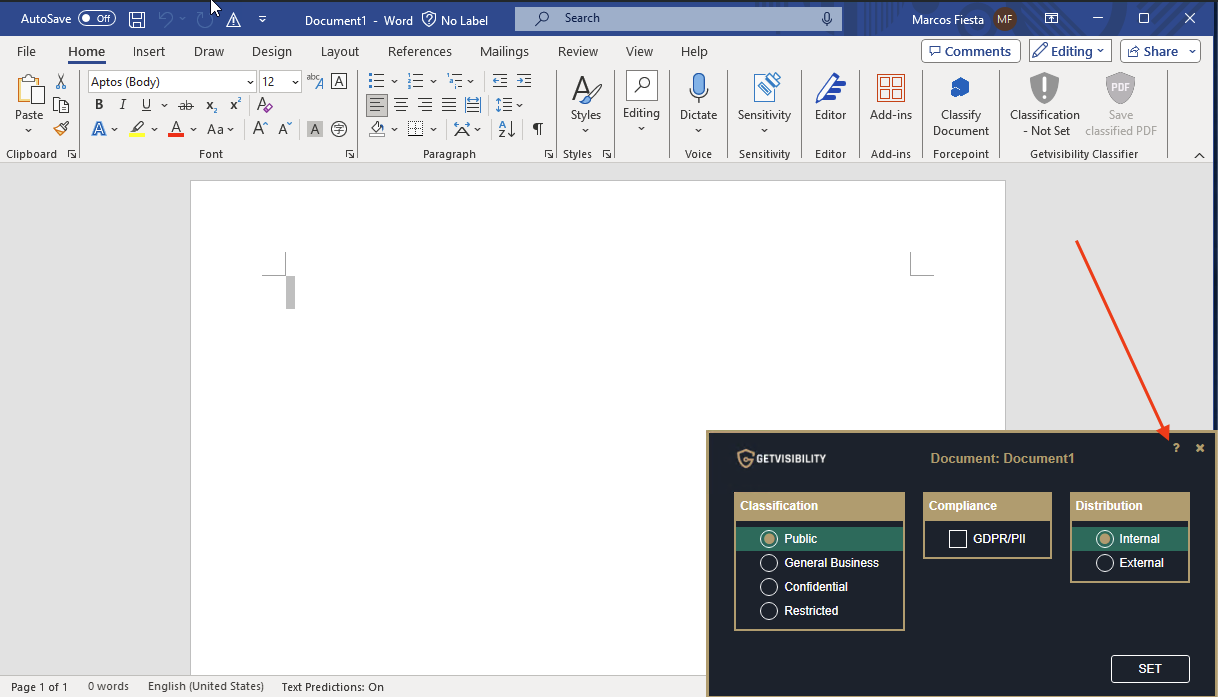

    12 Help URL: A Question Mark will be displayed on Agent UI when URL is filled in this field. Clicking on the Question Mark will then navigate to the entered help URL.

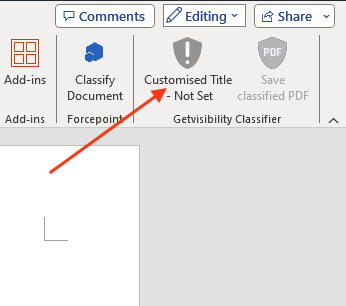

    13 Ribbon title: User can set the custom ribbon title using this property. If the field is left empty, will be displayed default title Classification.
  3. Enabling auto-update: See section Agent Auto-update.
