Endpoint connectivity

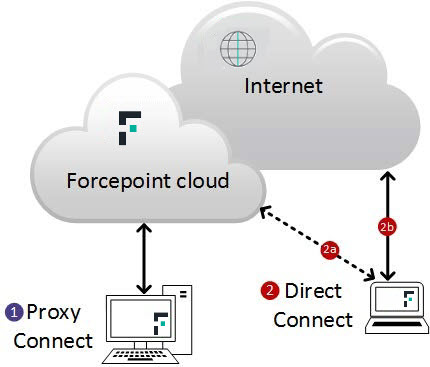

The following diagram illustrates the connectivity for Proxy Connect (through Neo or the Classic Proxy Connect endpoint) and Direct Connect (through Neo or the Cassic Direct Connect endpoint).

The diagram shows the two different endpoint versions servicing a web request:

1. In the first scenario, Neo or the Classic Proxy Connect endpoint directs all web traffic via the cloud proxy. If the request is permitted, the proxy connects to the requested website and sends content back to the end-user client. (If the request is blocked, the user is shown a block page.)
2. In the second scenario, a web request via Neo or the Classic Direct Connect endpoint consists of two stages:
   1. The endpoint connects to the cloud service to look up the user’s policy settings for the requested site.
   2. If the request is permitted, the client then redirects the request directly to the Internet. (If the request is blocked, the user is redirected to a block page.)

If required, you can deploy a combination of Proxy Connect and Direct Connect endpoints in your organization. However, only one classic endpoint instance (Classic Proxy Connect or Classic Directory Connect) can be installed on a client machine at any one time. The Neo endpoint agent includes both proxy connect and direct connect modes.
