What the Secure SD-WAN dashboard shows
The Secure SD-WAN dashboard allows you to monitor Secure VPN features, such as Multi-Link and VPNs, and to view statistics and reports related to VPN features.
Branches represent the VPN gateways and NetLink elements associated with each Security Engine. The SD-WAN dashboard summarizes status information for all branches and VPNs. Various statistics items related to VPN monitoring are available when you customize the SD-WAN dashboard. You can also use these statistics items in Reports and Overviews.

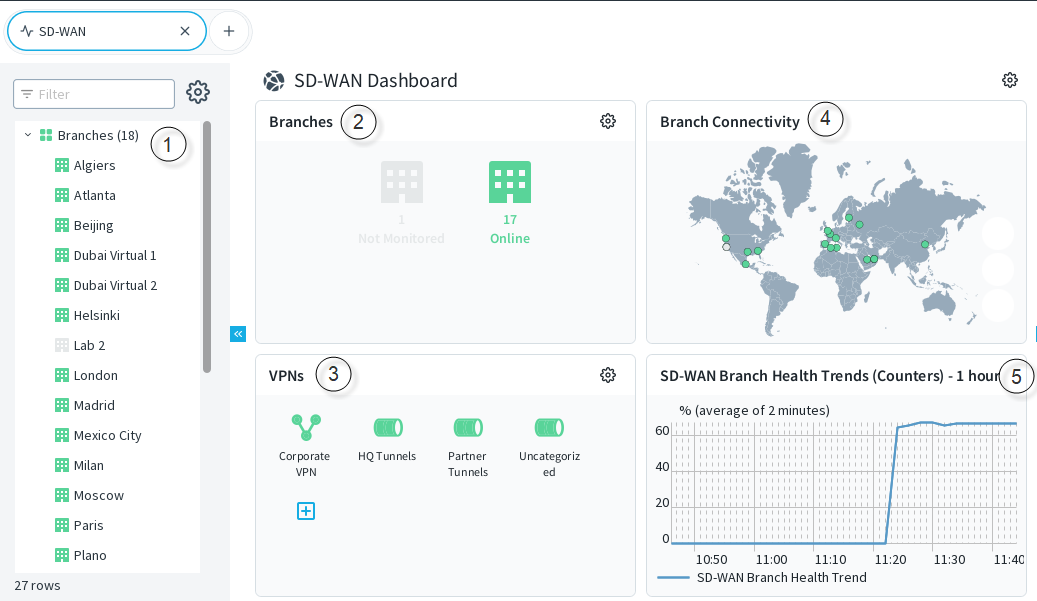

Figure: Secure SD-WAN dashboard
- 1
- The status tree shows the status of monitored branches, Route-based Tunnels, and policy-based VPNs. A branch is shown for an Security Engine if the Security Engine has VPN gateways that are used in a policy-based VPN or route-based tunnel, or if NetLinks associated with the Security Engine are used in an Outbound Multi-Link element.
- 2
- Contains status cards that show information about the VPN health and NetLink status of each branch. When you select an individual branch, the Dashboard view shows detailed monitoring information about the NetLinks, VPN tunnels, and traffic associated with the branch.
- 3
- Shows the overall status of VPNs and the status of gateways and tunnels in the VPNs. When you select an individual policy-based VPN or group of Route-based Tunnels, the Dashboard view shows detailed monitoring information about the policy-based VPN or Route-based Tunnels.
- 4
- Shows the status of all monitored branches on a map.
- 5
- Shows how the health has changed over time.
