Deploy using MDM-supplied UPN (certificate-free)

This section explains how to deploy Forcepoint Mobile Endpoint Agent using Microsoft Intune without requiring certificates. This certificate-free method uses username/password authentication and delivers the user's User Principal Name (UPN) through an app configuration policy.

1. Step 1: Add the Mobile Endpoint Agent application.
   1. Sign in to the Microsoft Intune admin center.
   2. Navigate to Apps > iOS/iPadOS > Create. The Select app type pane opens.
   3. Select iOS store app from the App type dropdown, then click Select.

   4. Click Search the App Store and search for Forcepoint Mobile. Then select the application.

   5. On the App Information tab, you must populate the app metadata fields such as the name, description, publisher, applicable device type, and minimum operating system. You are only required to fill out the mandatory fields. Click Next.

      Following is an example of information that you can enter in the mandatory fields:



   6. On the Assignment tab, under the Required section, select the groups that will receive this application. You can select user groups, device groups, all users, or all devices. Click Next.

   7. On the Review + create tab, verify your settings, then click Create. The application is added to Intune.

2. Step 2: Create an App policy to deliver the UPN.
   1. Navigate to Apps > iOS/iPadOS > Create > Managed devices.
   2. On the Basics tab, enter the following properties:

      Table 1.

      Key	Value
      Name	Enter a descriptive name (for example, "Forcepoint Mobile — UPN Configuration")
      Description	(Optional) Enter a description
      Device enrollment type	Select Managed devices
      Platform	Select iOS/iPadOS.
      Targeted app	Select the Forcepoint Mobile application you created in Step 1.

   3. On the Settings tab, add the following configuration key:

      Table 2.

      Configuration key	Value type	Configuration value
      FP_UPN	String	{{UserPrincipalName}}

      Note: Important: Use the exact casing shown "{{UserPrincipalName}}". Intune will automatically replace this token with the user's actual UPN (for example, user@contoso.com).
   4. On the Assignments tab, under the Included groups section, choose groups that will have the solution force installed. This can be a user group, device group, all users, or all devices. Then click Next.
   5. On the Review + create tab, verify your settings, then click Create. Your changes are saved, the profile is assigned, and it appears in the profiles list.

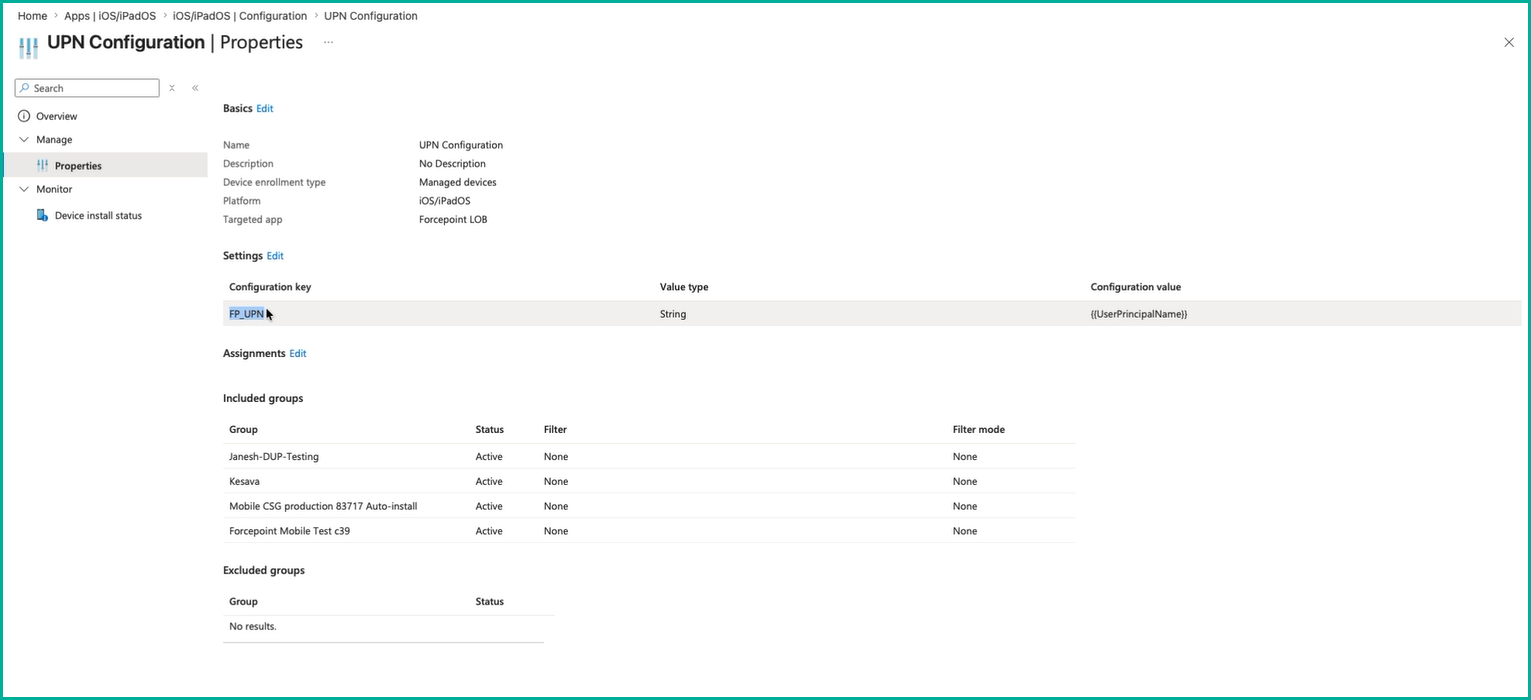

      Following is an example of an app policy to deliver the UPN.



3. Step 3: Create a VPN profile.
   1. Navigate to Devices > Configuration > Create > New Policy.
   2. Set the following properties and select Create:
      • Platform: Select iOS/iPadOS.
      • Profile type: Select Templates.
      • Template name: Select VPN.



   3. On the Basics tab, enter the following properties:
      • Name: Enter a descriptive name (for example, "Forcepoint Mobile — Certificate-Free")
      • Description: (Optional) Enter a description for this profile
   4. On the Configuration Settings tab, select the Custom VPN from the dropdown.
   5. Before entering values, open the Forcepoint Data Security Cloud portal and navigate to Endpoint Management > Mobile Endpoint Agent > Global Settings. Copy and save the following values:
      • Registration URL
      • Installer Key
      • Tenant ID (from User Profile > Profile Information)
      • Logging URL
      • VPN Server Address
      • VPN Identifier



      For more details about these fields, see the Global Settings page.

   6. Configure the following Base VPN settings:

      Table 3.

      Key	Value
      Connection name	Enter a meaningful name (for example, "Forcepoint Mobile VPN")
      VPN server address	Enter VPN Server Address
      Authentication method	Select Username and Password
      VPN identifier	Enter VPN Identifier
      Enter key and value pairs for the custom VPN attributes	FP_BACKEND	Enter Registration URL
      	FP_INSTALLER_KEY	Enter Installer Key
      	FP_DS_TENANT_ID	Open the Forcepoint Data Security Cloud portal and navigate to User profile icon > User profile > Profile Information. Copy the DS ID from this page and enter it here.
      	FP_SKIP_STARTUP_SCREEN	Select false to show users the EULA, which they need to agree to before the VPN can start. Note: When you use the FP_UPN parameter, it is recommended that you set this to false because the application cannot have access to auto-start the VPN tunnel.
      	FP_LOG_URL	Enter Logging URL

      Note: Intune does not prompt for username or password values when you select Username and password authentication. This setting only configures a flag in the profile. The app handles authentication automatically.

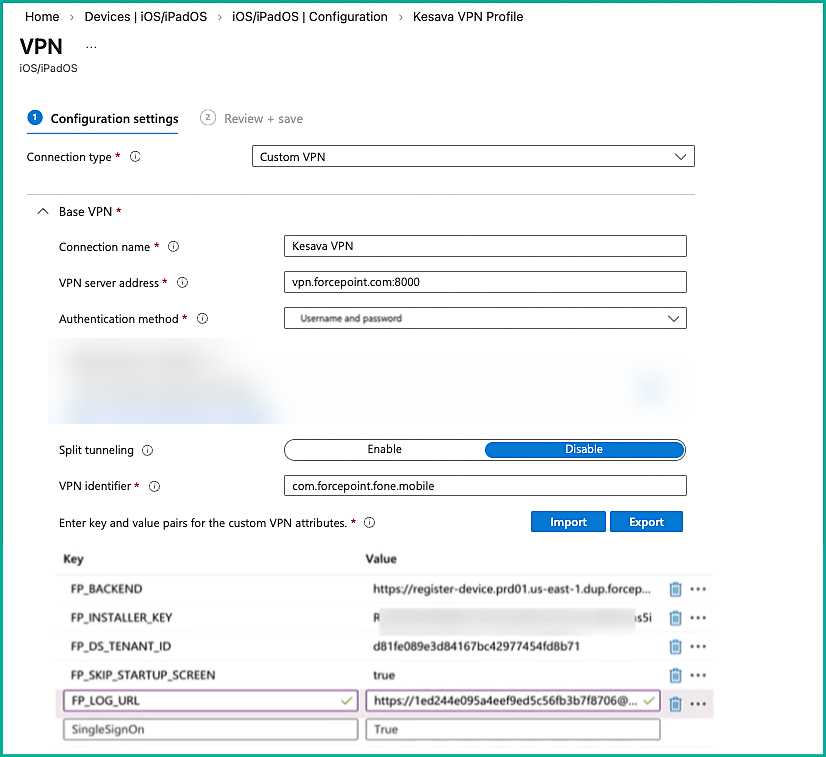

      Following is an example of information that you can enter in the mandatory fields:



      And click Next.

   7. On the Assignments tab, under the Included groups section, select groups that will have the solution force installed. This can be a user group, device group, all users, or all devices. Then click Next.
   8. On the Review + create tab, you can confirm the settings you have entered. When you select Create, your changes are saved, and the profile is assigned. The policy is also shown in the profiles list.
