How to access Lineage information

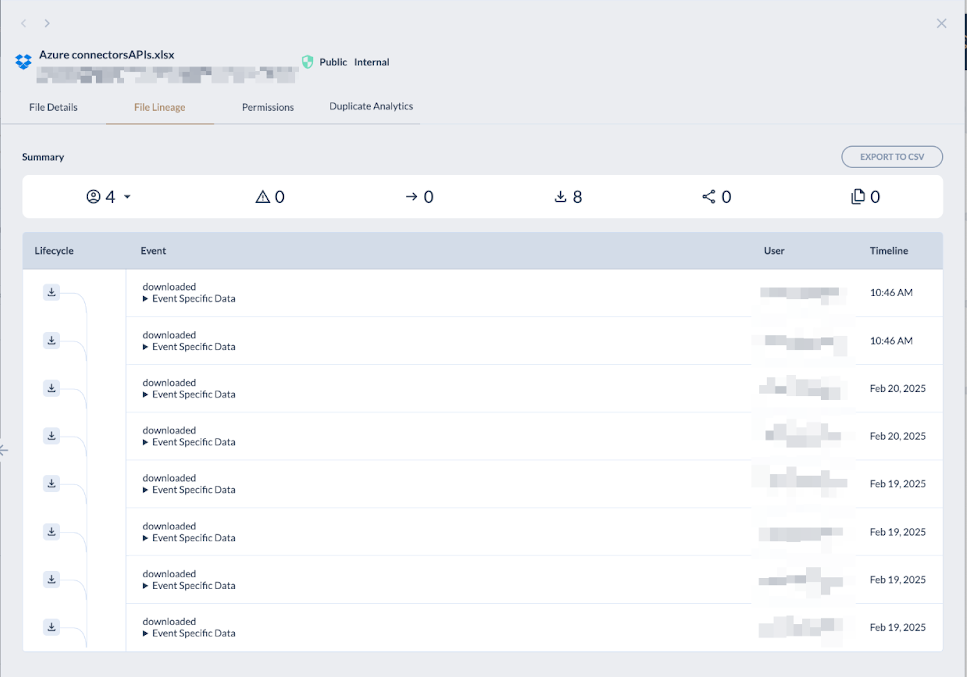

Description of the Lineage Screen

  • Lifecycle: Displays the complete lifecycle of a file from creation to current state.
  • Event Timeline: Chronological list of all file-related actions.
  • User & Device: Shows which users and devices interacted with the file.
  • File Path: Original and current locations of the file.

How to Access Lineage

  • Enterprise Search: Select the file, click the dropdown, and choose "Lineage."
  • File View: Expand the file details and navigate to the "Lineage" tab.

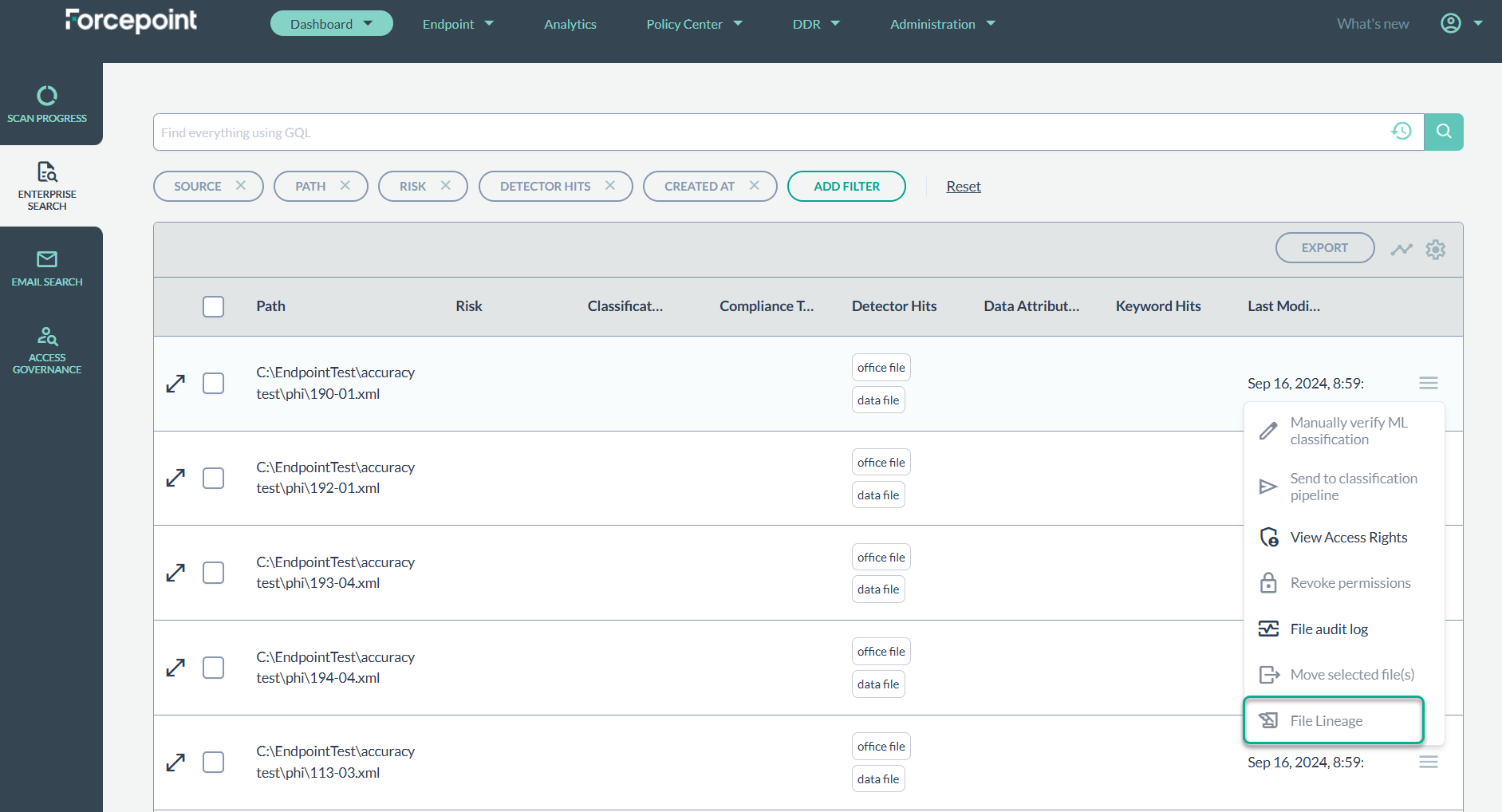

  1. From Enterprise Search: Select a file and click on File Lineage in the drop-down.

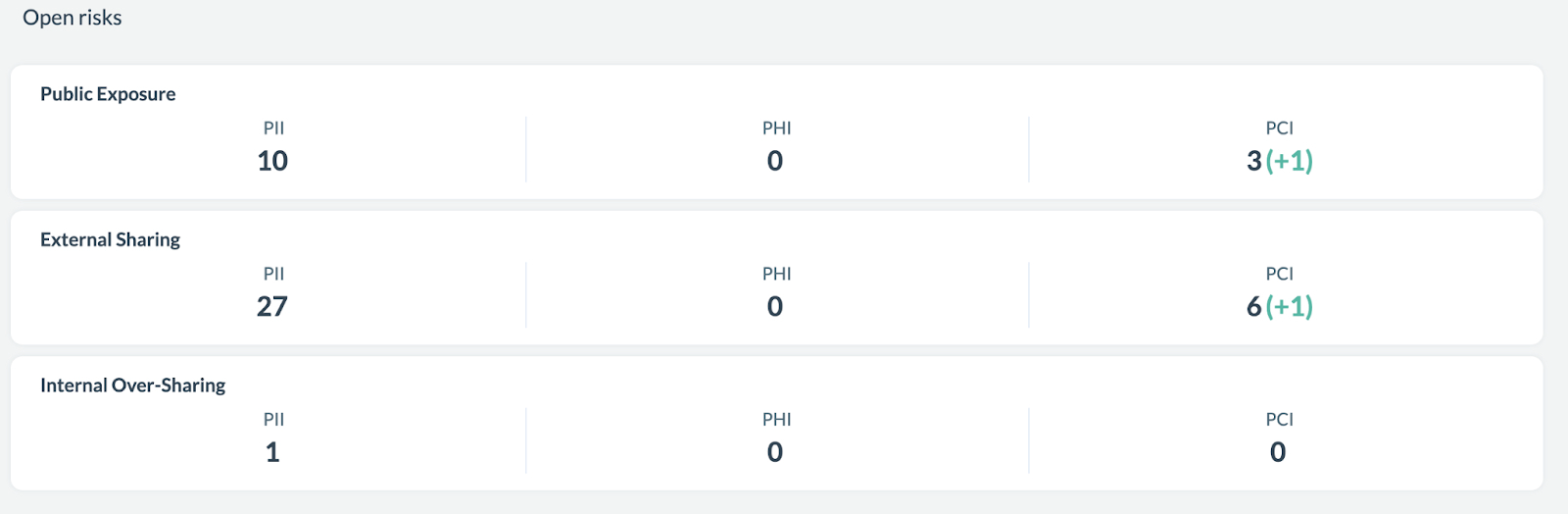

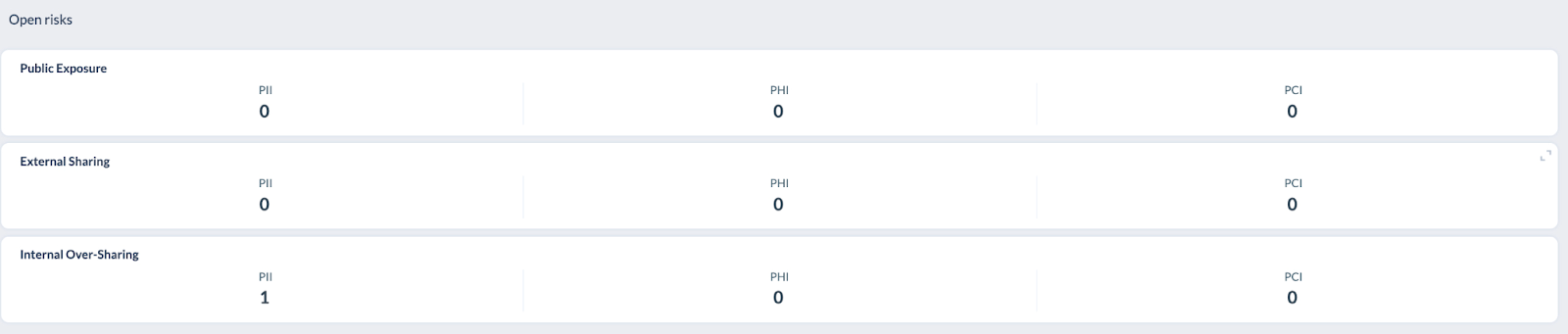

  2. From Open Risks: Identify a flagged file and expand the side menu.

Lineage UI Explanation

Filters
  • Event Type (Create, Modify, Delete, Share, Move, etc.)
  • Data Source
  • User Activity
Export
  • Export lineage details to CSV for auditing and reporting.
Color Scheme
  • Green: Normal activity
  • Yellow: Medium-risk events (e.g, permission changes)
  • Red: High-risk events (e.g, external sharing)

Hover and Export Options

  • Event Description: Hovering over event icons shows a brief description.
  • Export: Export the entire lineage history, including metadata, to CSV for audit trails and reporting.
