OneDrive Streaming Configuration

This section provides steps on how to enable real-time data streaming for a OneDrive connection and monitor streaming events within the Forcepoint DSPM platform.

Configuring permissions for an Azure App

  • Login to Azure Portal

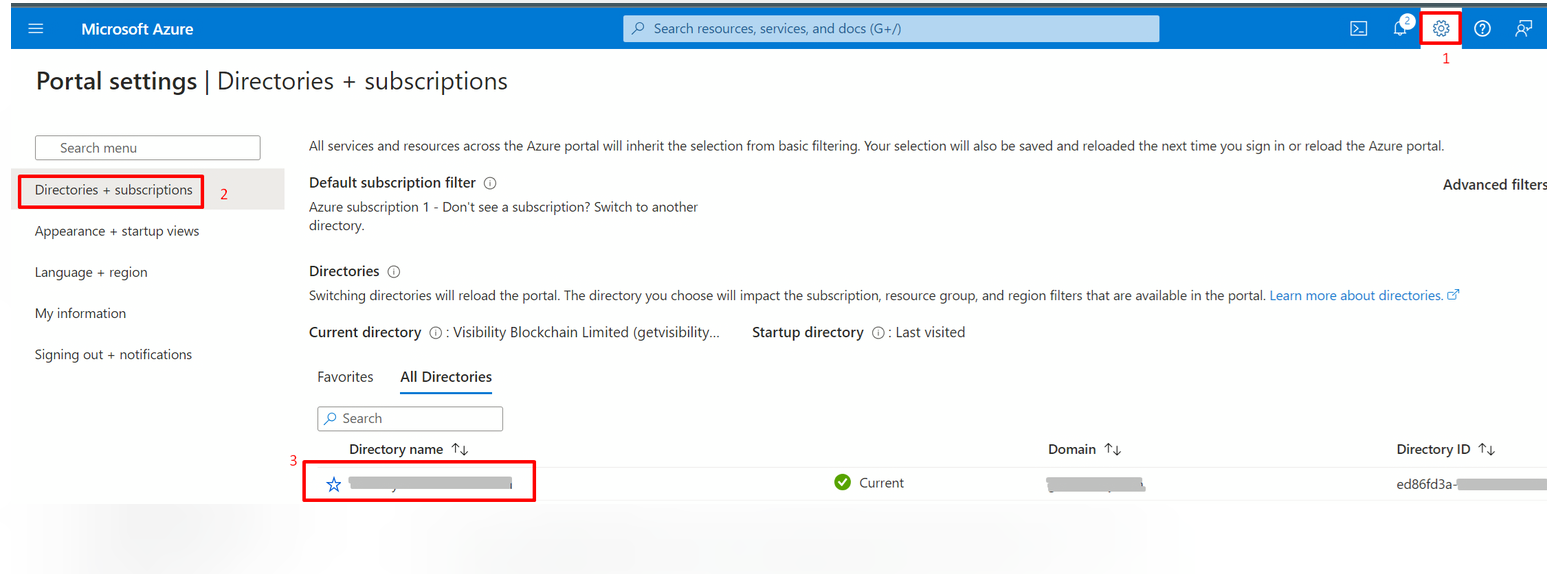

  • If there are multiple tenants to choose from, use the Settings icon in the top menu to switch to the tenant which needs to be registered to the application from the Directories + subscriptions menu

  • Browse to App Registration and select your application that was created for the scanning.

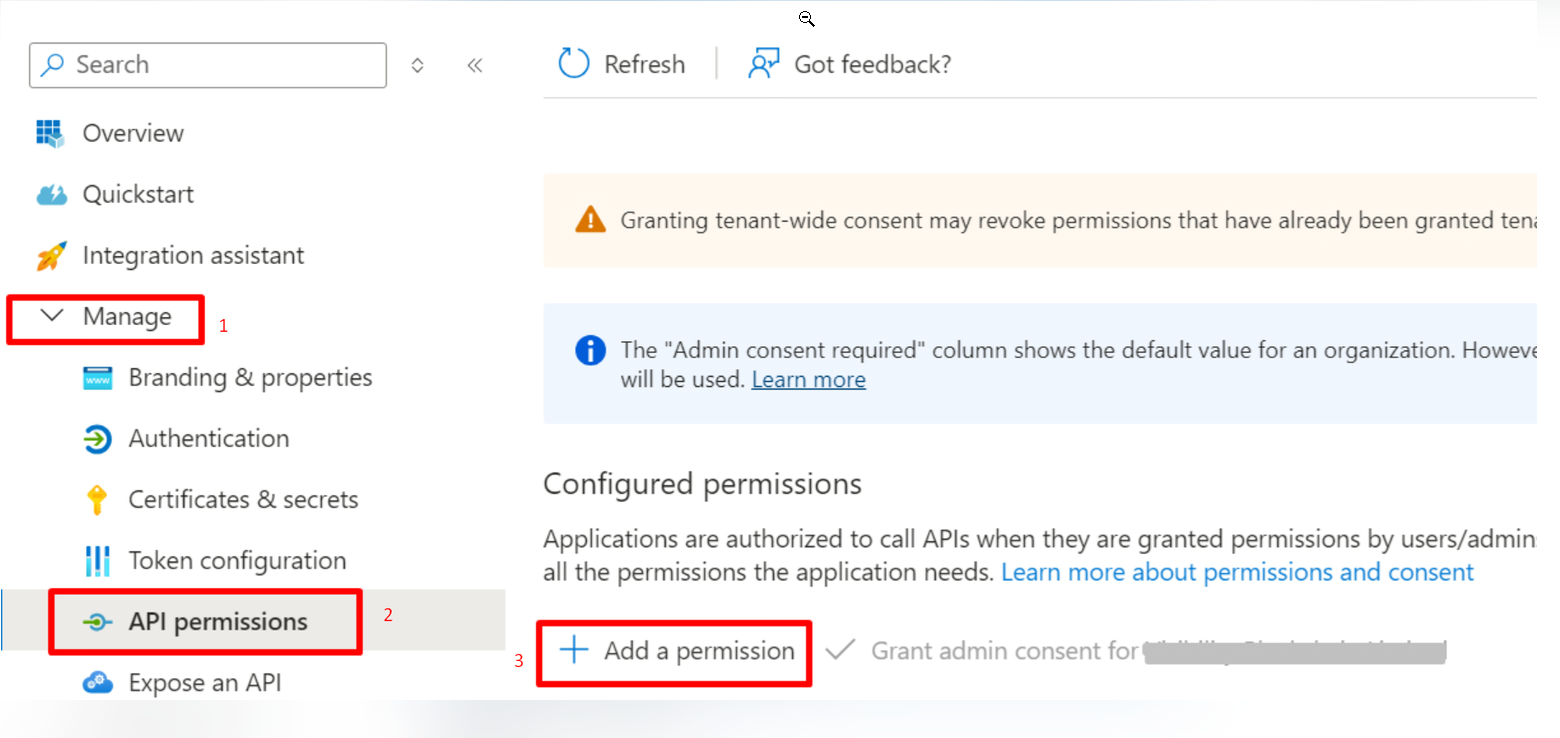

  • Navigate to Manage > API permissions on the left menu, and Add a permission

  • Select Microsoft APIs > Office 365 Management API

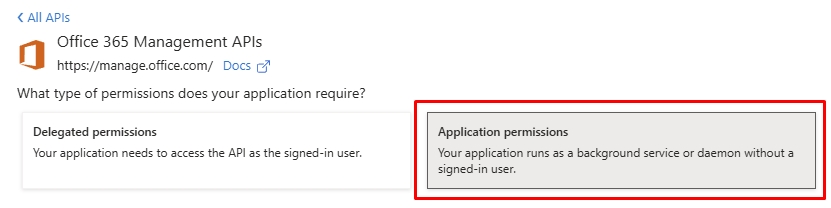

  • Select Application permission

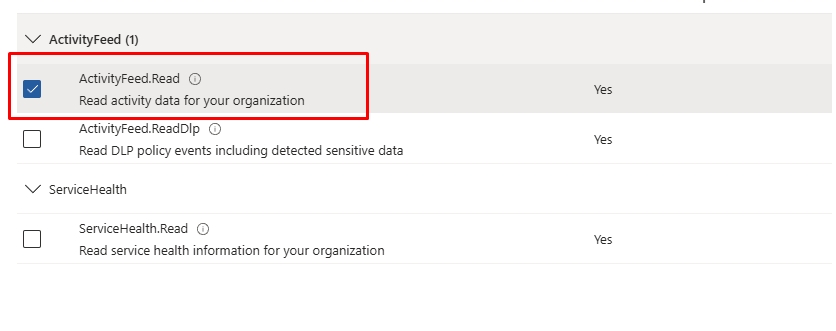

  • Select ActivityFeed.Read permission

  • Permissions required

    • All the scanning permissions - see SharePoint Online.

    • Office 365 Management API ⇒ Application Permissions ⇒ ActivityFeed.Read

  • Once all the required permission is added, click "Grant admin consent"

  • Sign into the https://purview.microsoft.com/ portal using Microsoft Edge browser.

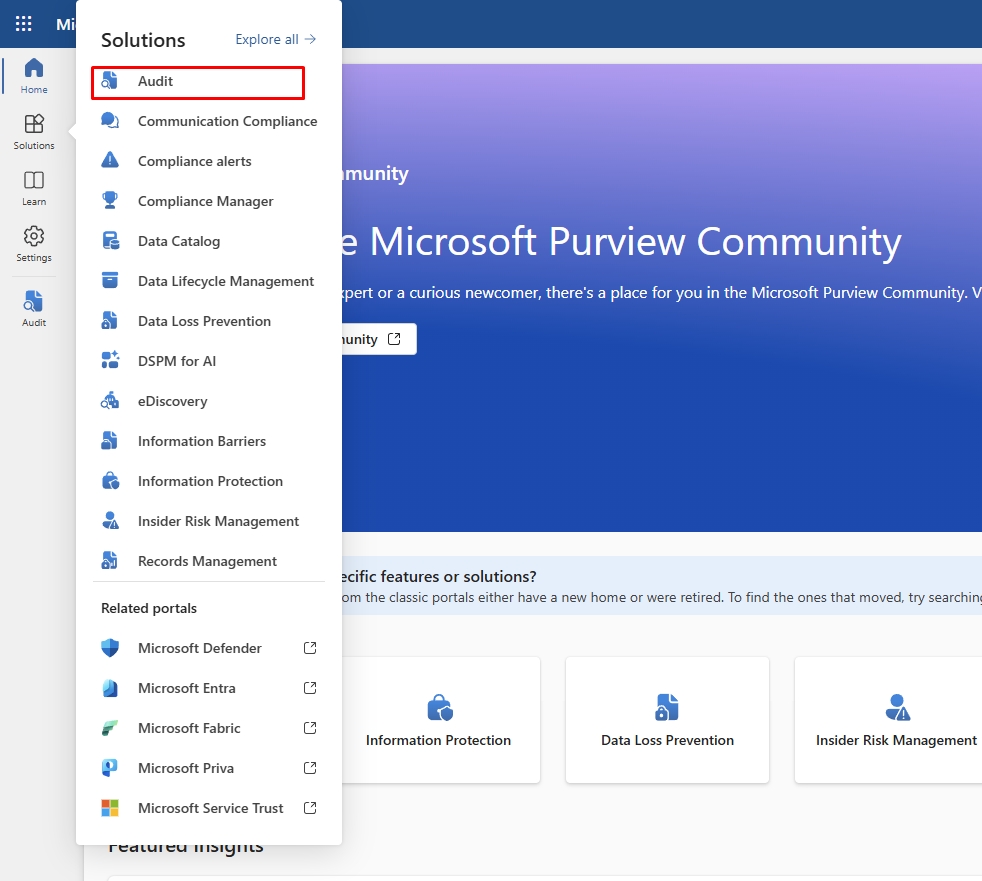

  • Select the Audit solution card. If the Audit solution card is not displayed, select View all solutions and then select Audit from the Core section

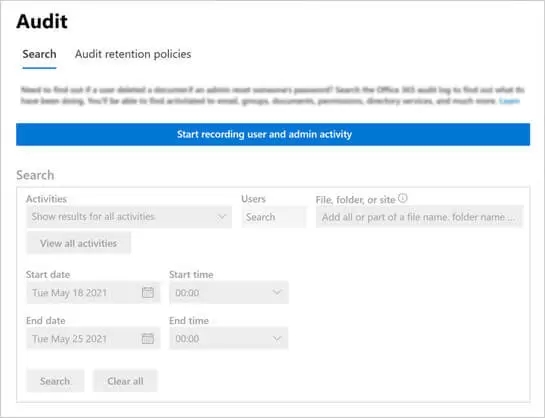

  • If auditing is not turned on for your organization, a banner is displayed prompting you to start recording user and admin activity. Select the Start recording user and admin activity banner.

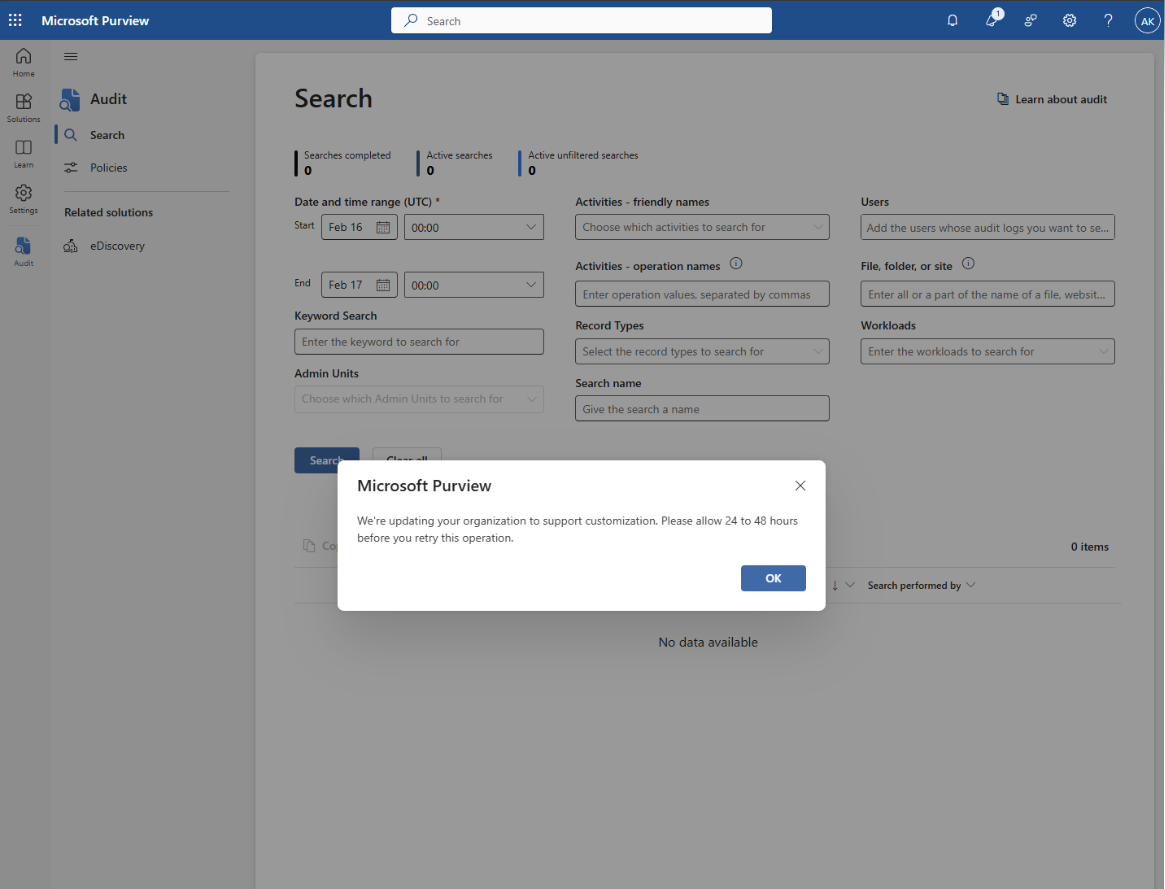

  • In certain cases, recoding cannot be enabled immediately and requires additional configuration. If this applies, users will be prompted to enable the customization setting. Select OK, and a new banner will appear, informing you that the process may take 24 to 48 hours to complete. After this waiting period, repeat the previous step to proceed with enabling recoding.

Steps to Enable Data Streaming for OneDrive

Create a New Scan Configuration

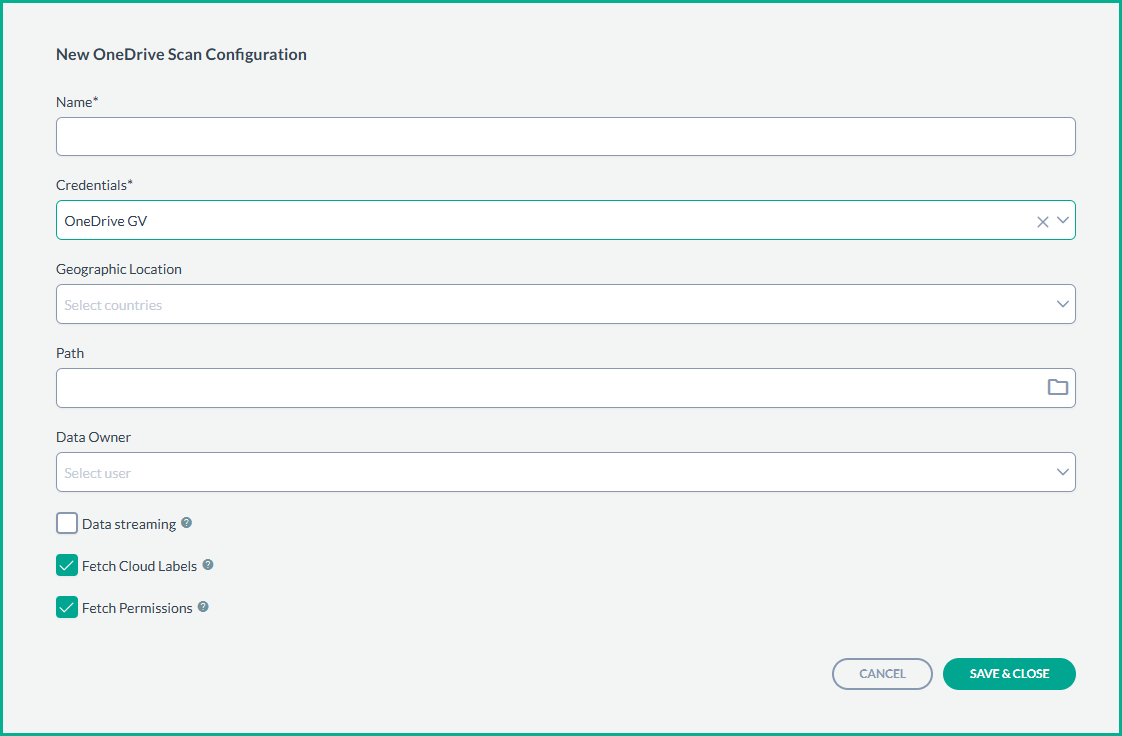

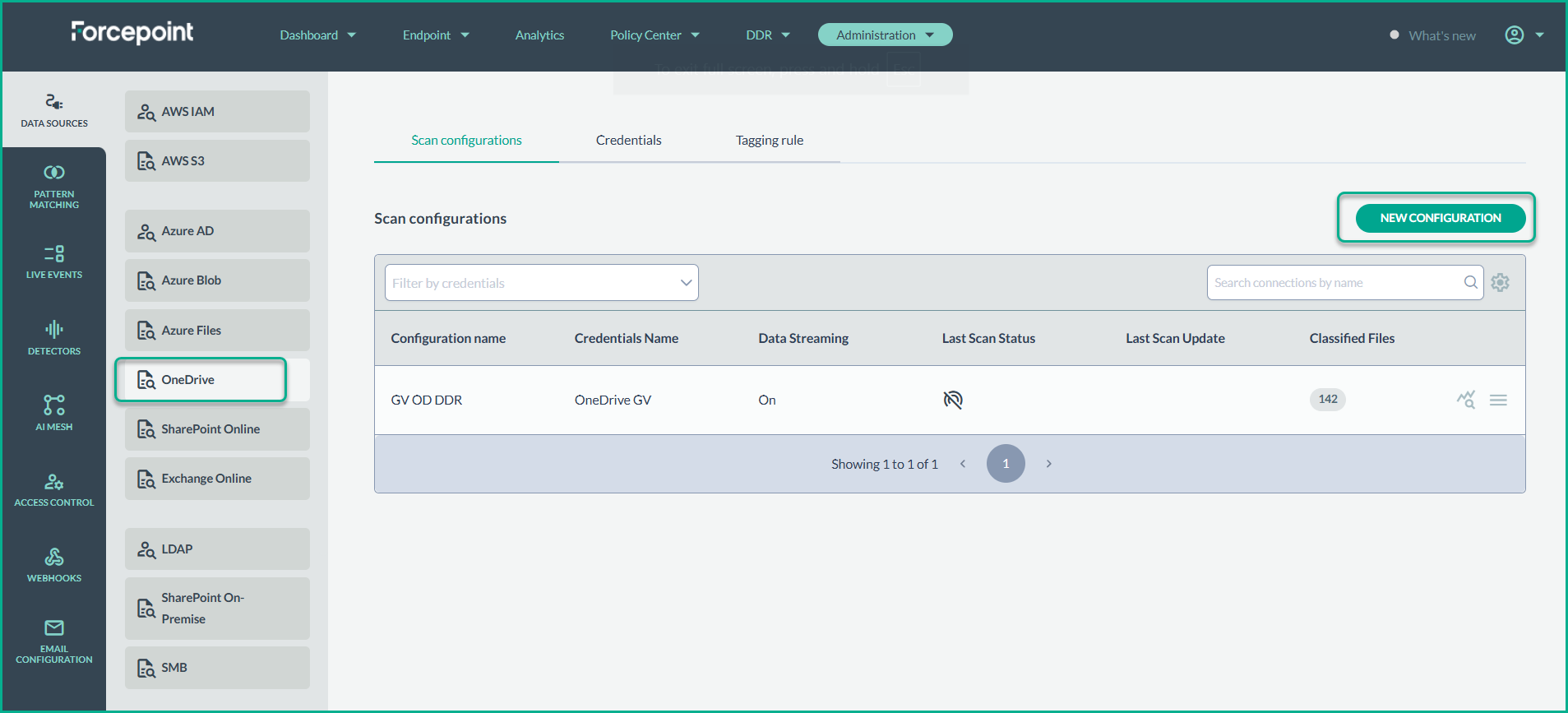

  1. From the Data Sources page, select OneDrive from the list of available data sources. In the Scan Configurations list, create a New Configuration.

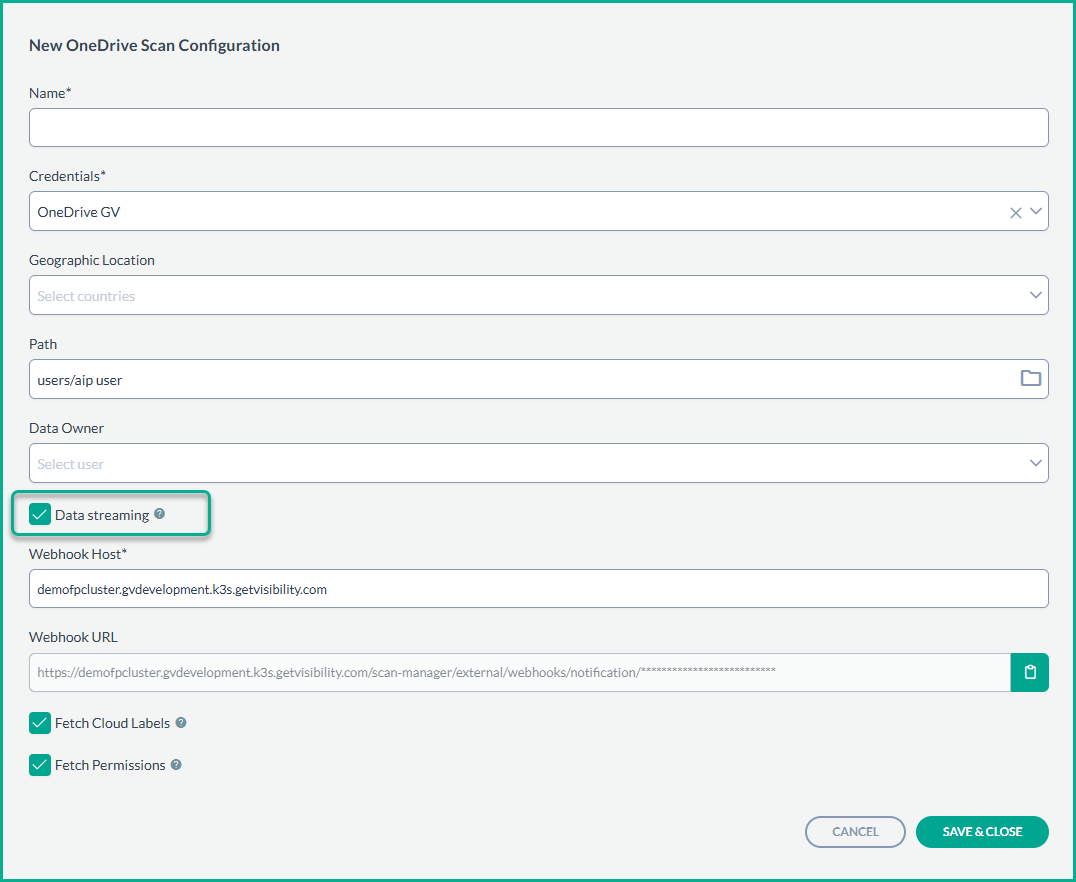

  2. Make sure the connection has a Name and Credentials set. Then select the Path icon.

Pick a Folder for Real-Time Events

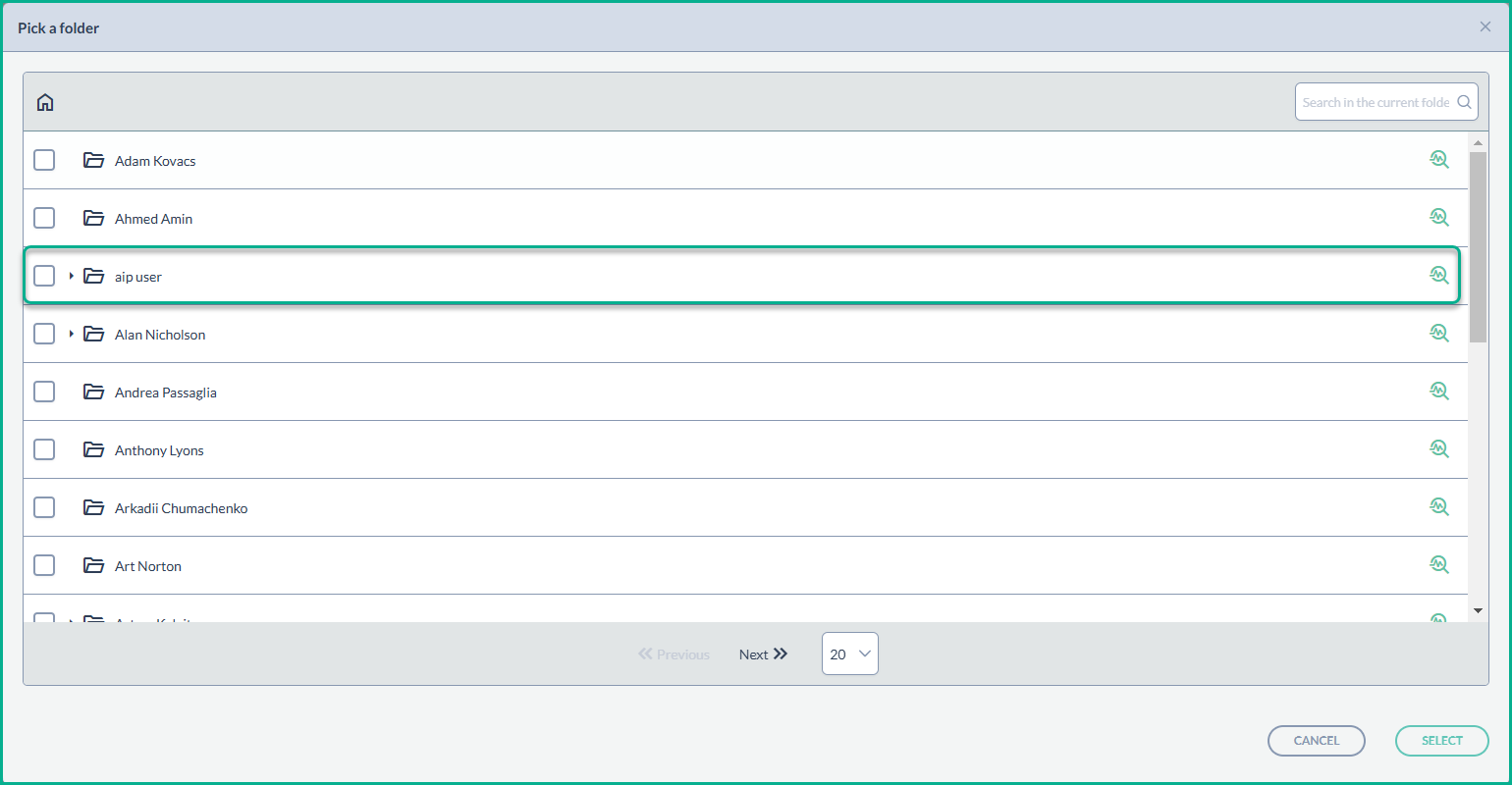

  1. Click on the Folder icon in the Path field to select the folder you want to monitor for real-time events.
    • Magnifying glass icon: Folders with this icon next to them indicate that real- time events can be subscribed to from this directory.

  2. After selecting the folder, click Save & Close to finalize the changes.

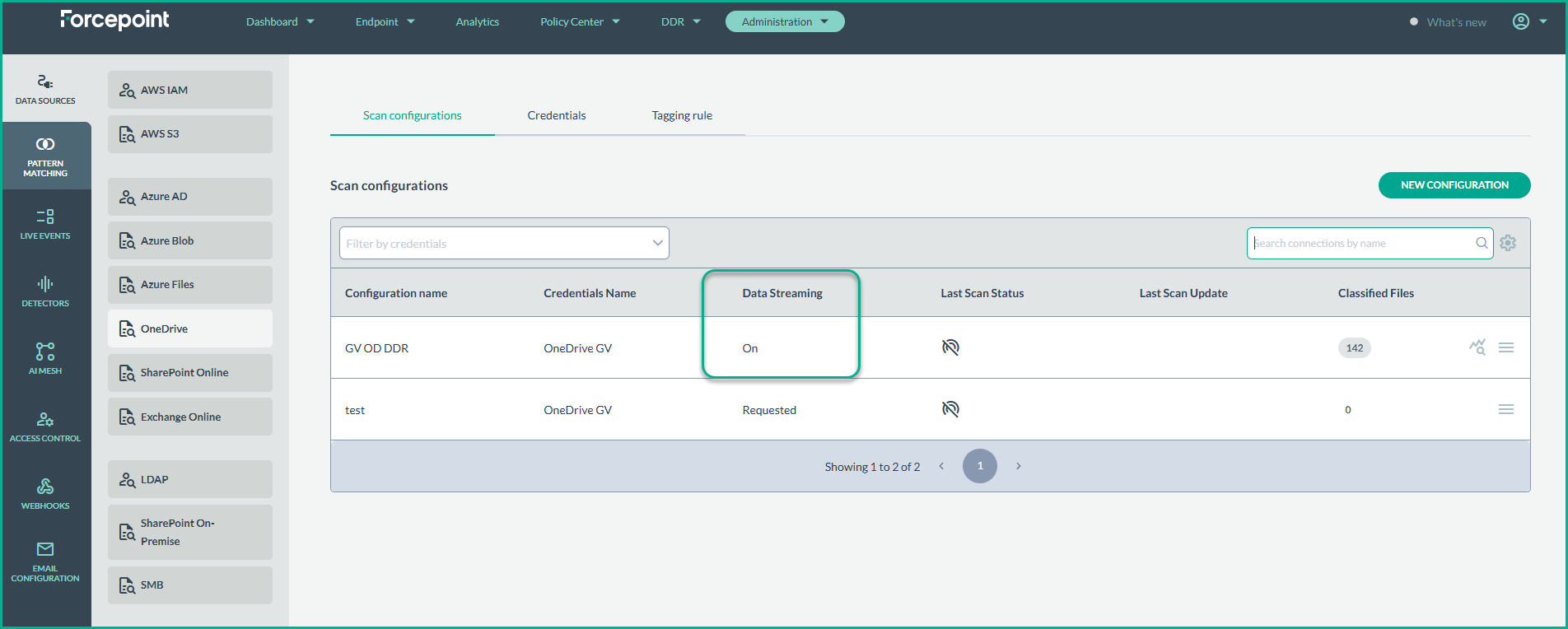

  3. Clock icon: When data streaming is being activated, the clock icon will appear, indicating that the subscription is being processed. Once the subscription is activated, this icon will change to a green magnifying glass.
  4. After enabling Data Streaming, the system will automatically handle the subscription to OneDriveʼs real-time events. There is no need to manually configure Webhooks.

Monitoring Real-Time Events

After the subscription is activated (green magnifying glass icon), real-time events will start flowing into the platform, and you will be able to monitor them from various sections of Forcepoint DSPM.

Viewing Events in the Live Events Section

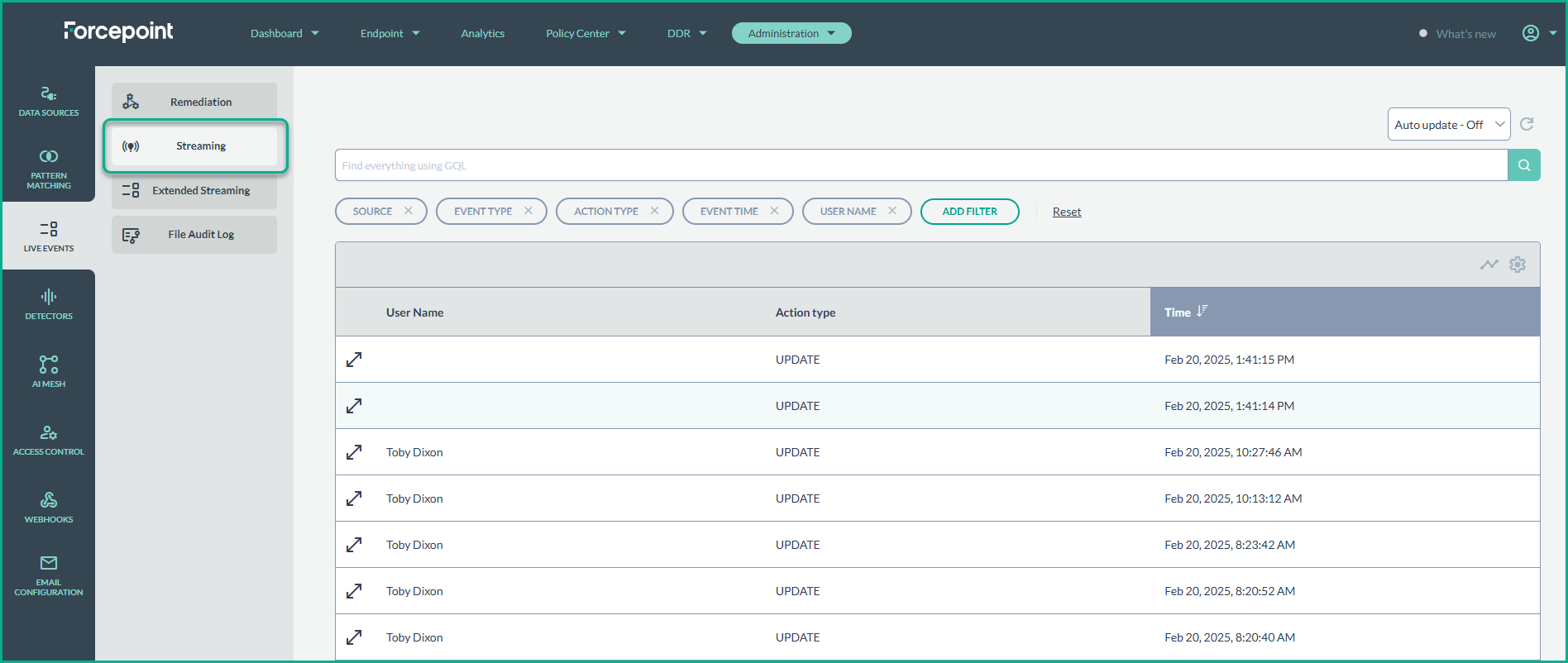

  1. Navigate to the Live Events section under Administration to view a detailed audit log of all streaming events.

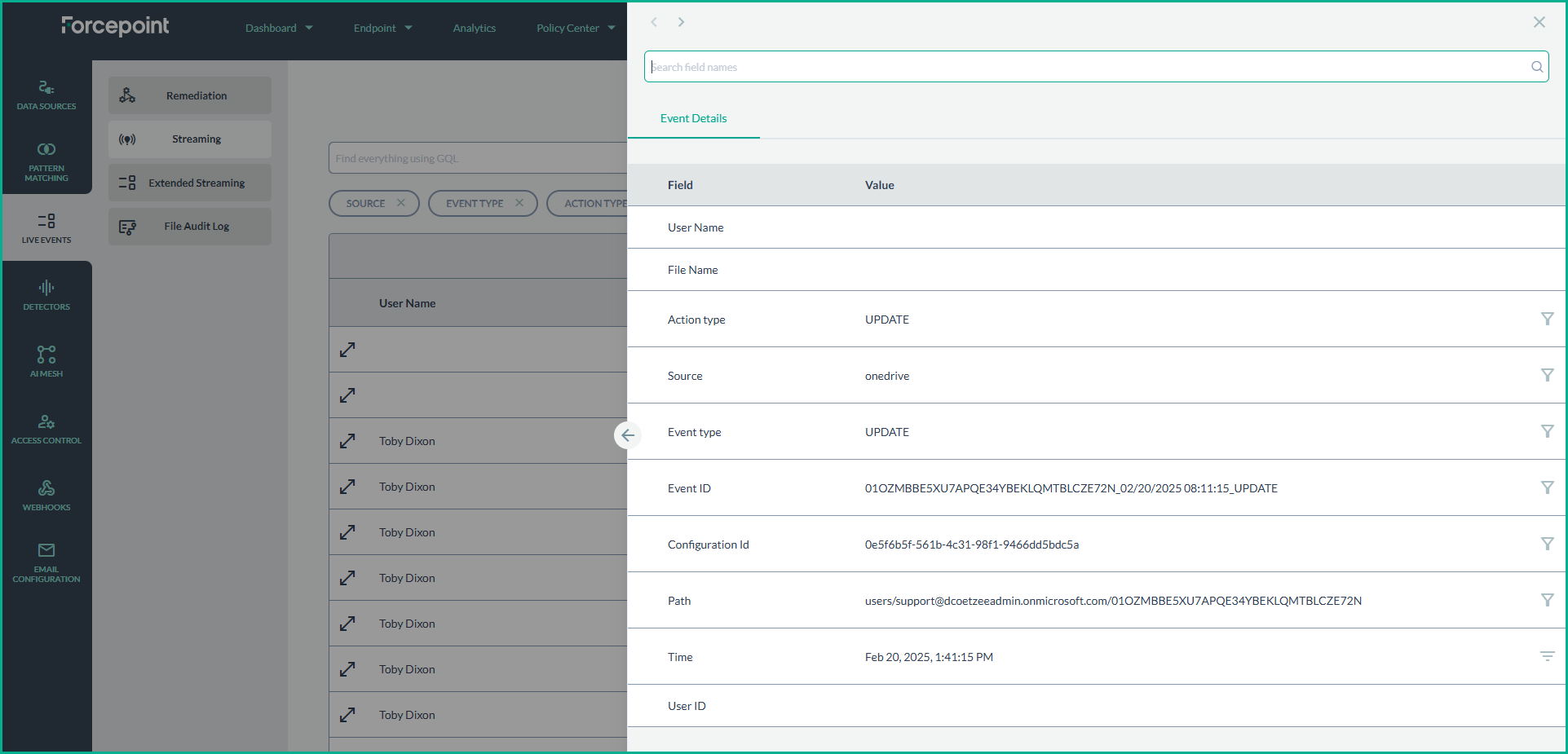

  2. In this section, you can filter and view event details.
